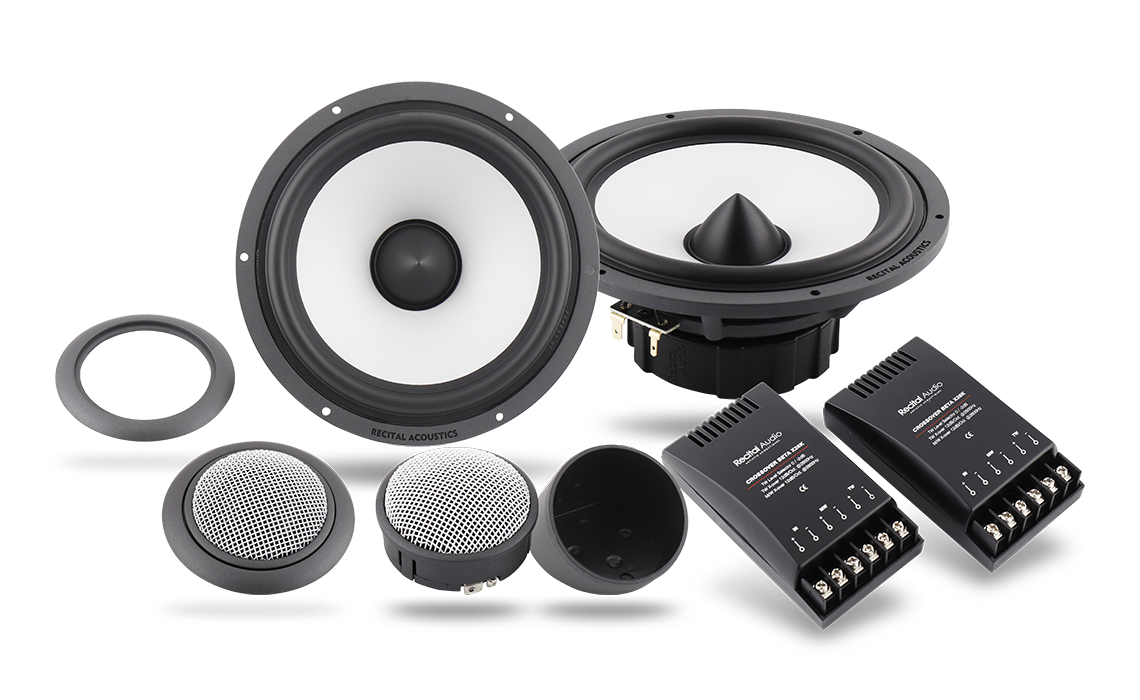

BETA 6 is a two-way car audio systems, employing the proprietary Beta 25 tweeter, the BETA 165 woofer and the specific Beta Series crossover, creating a combination of hi-tech products to ensure thrilling acoustic performance. Excellent frequency response, high level of installation friendliness even with OEM placements, efficiency and appealing design: the BETA 6 systems comprise and contain the whole sound philosophy of Energy. Pure energy for listening pleasure.

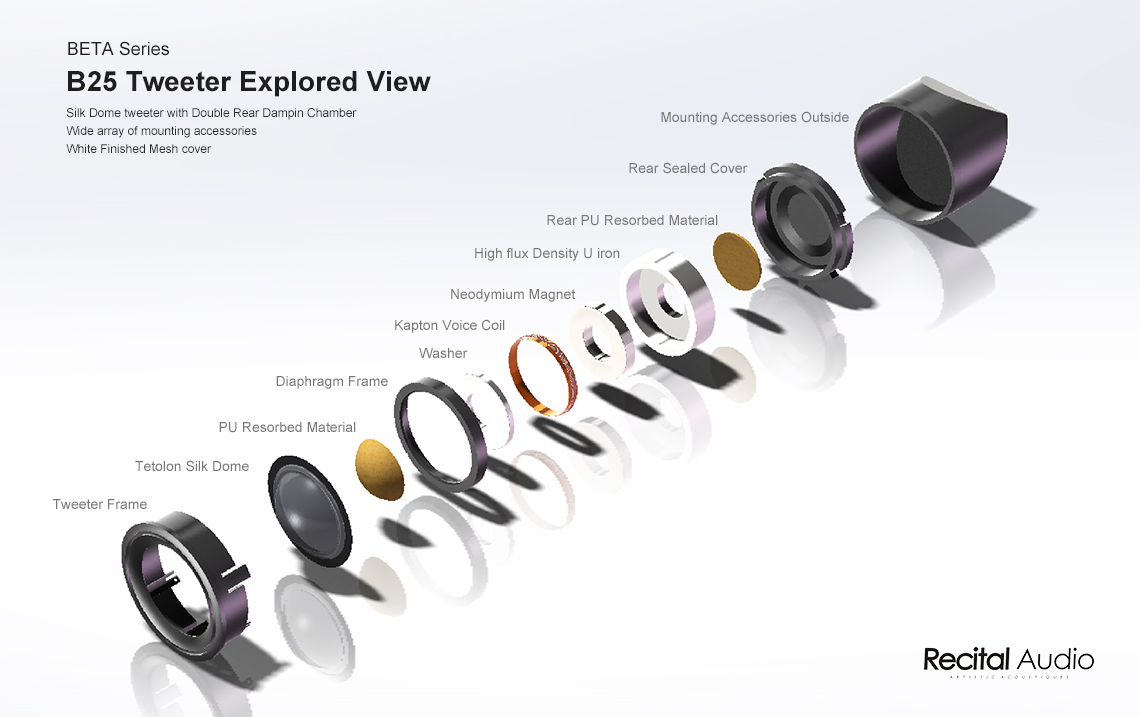

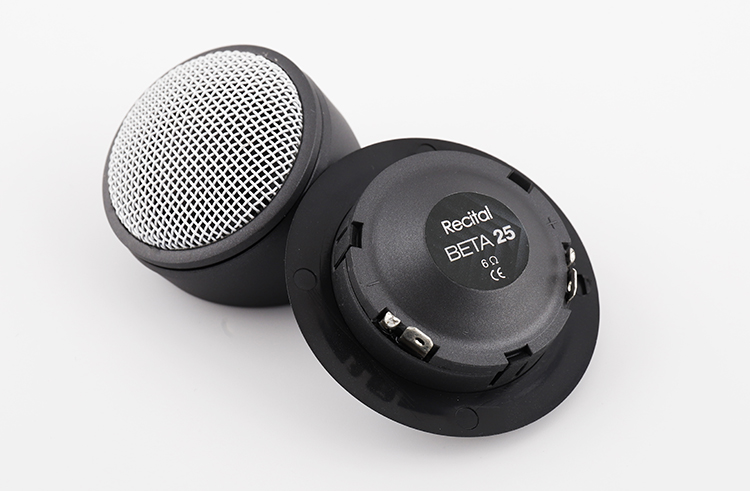

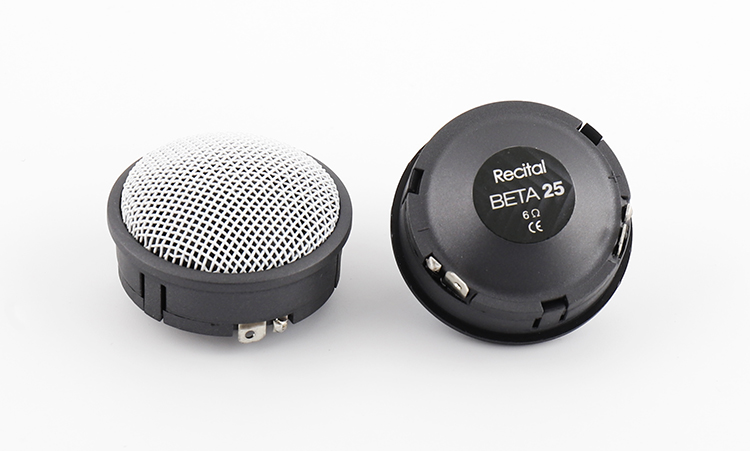

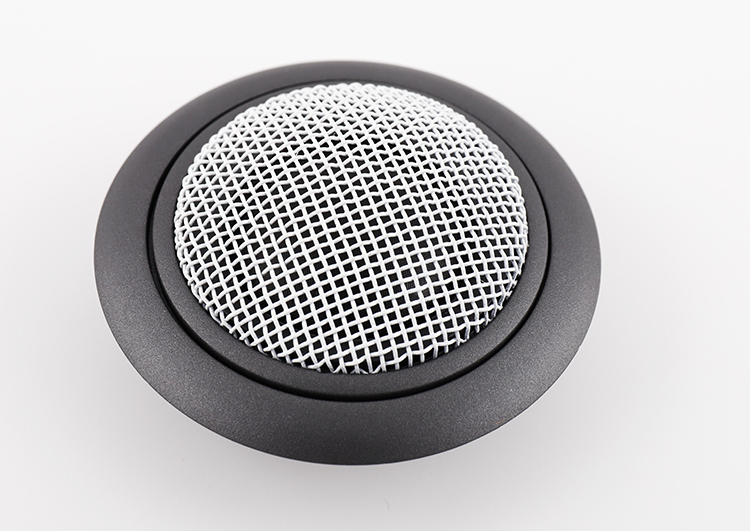

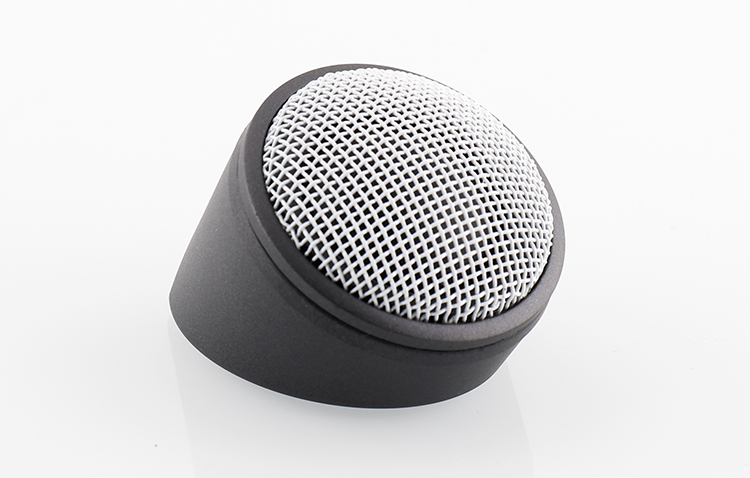

BETA 25
Silk dome, with hemispheric profile and wide roll surround; extremely light weight and properly damped for smooth and extended high frequency response.
Acoustic compression chamber; high efficiency and off-axis optimized response.
CCAW (Copper Clad Aluminium Wire) ultra light ferrofluid-cooled mobile voice coil.
High energy neodymium magnet.
Low carbon content plates for maximum magnetic permeability and high heat dissipation.
Rear Chamber and damping material; controlling acoustic resonances insuring clear, high frequency tones.

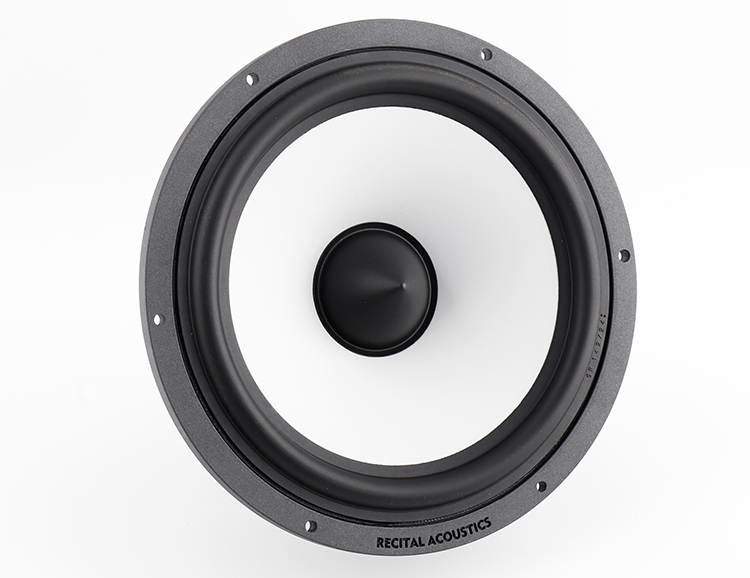

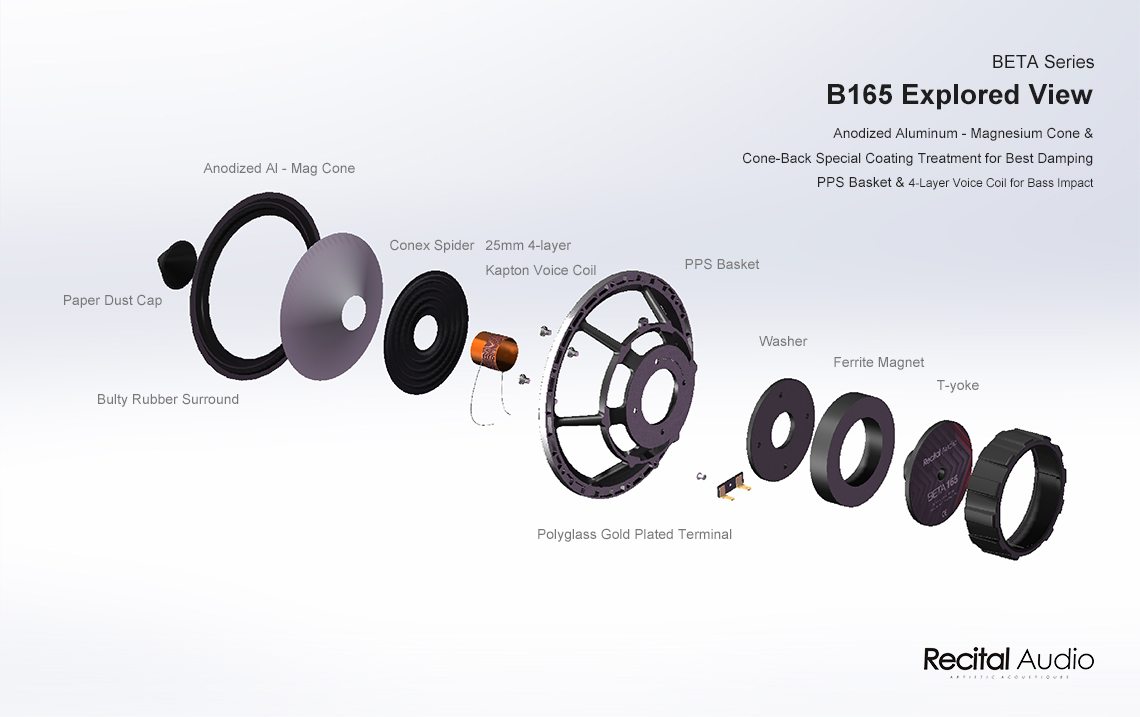

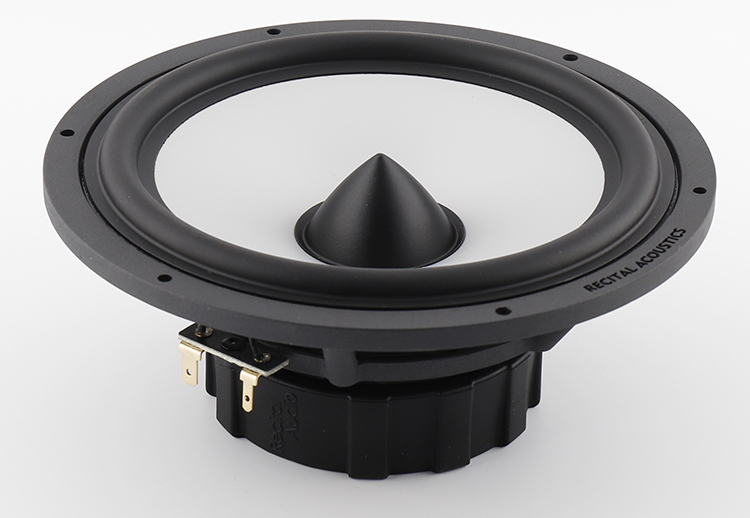

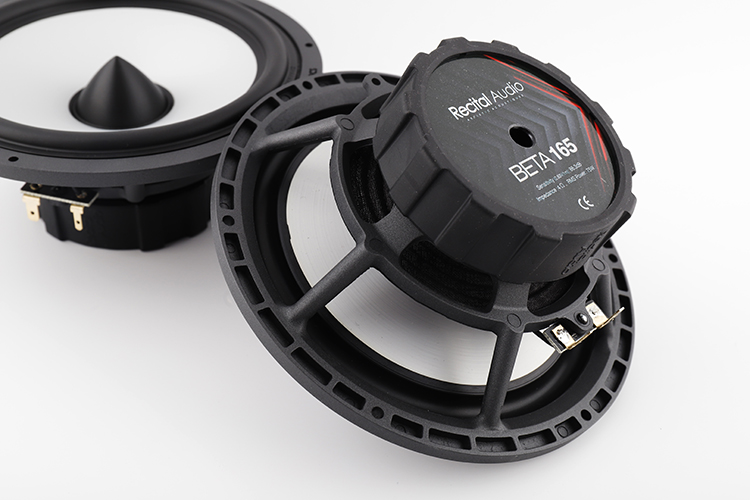

BETA 165
Anodized aluminum - magnesium cone provides deep, tight and dynamic bass output.
Bullet PP dust-cap for best off-axis response and clear mid-high frequency detail.
4-layer Pure copper voice coil, wound on aluminium former, for very good thermal and mechanical capacity.
Large motor assembly for excellent mobile voice coil control.
Low carbon content plates for maximum magnetic permeability and high heat dissipation.
Rubber magnet cover provides damping to the basket and motor structure and protects from abrasions and damages.
DIN size PPS basket coated with scratch-proof, corrosive-resistant material.

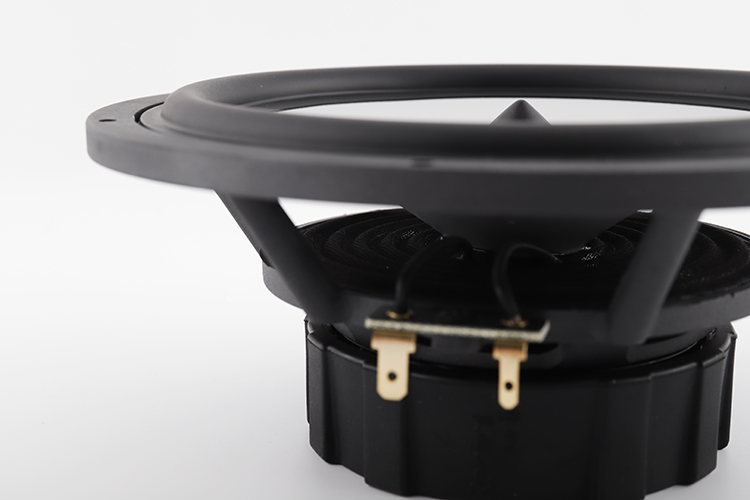

Golden-plated, high current terminals.
Silver-plated lead wires, for maximum reliability and conductivity.
Epoxy glue for basket and motor system provides perfect coupling.
Curve memory Nomex spider for consistent, reliable performance.
Data Table
Power Handling - Peak: 150W
Power Handling - Continuous: 75W
Impedance: 4Ω
Frequency response: 55-23kHz
Sensitivity: 88.3dB SPL
Woofer size: 170 mm
Tweeter size: 25 mm
Woofer magnet: High density flux ferrite
Tweeter magnet: Neodymium
Woofer cone: Anodized aluminum cone
Tweeter dome: Silk-fabric

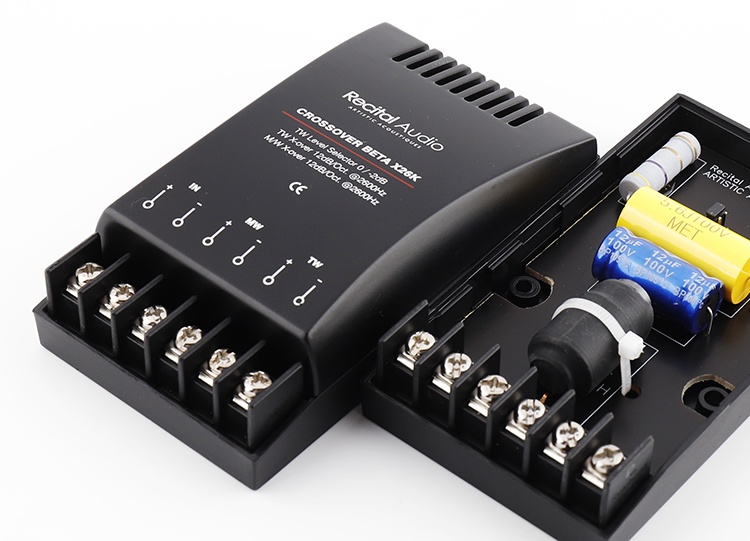

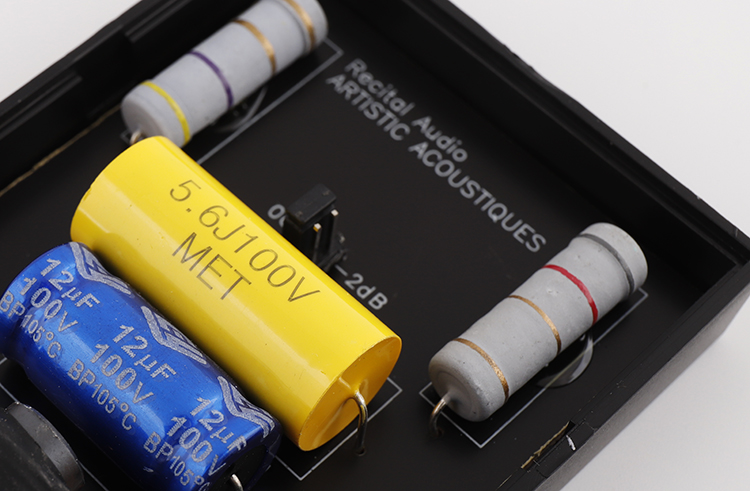

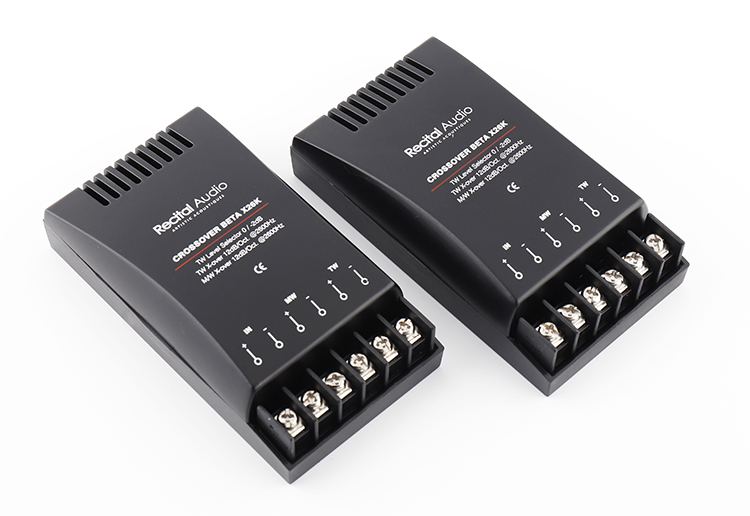

Crossover type: LP/HP
Crossover cut off: 6-12 dB Oct.@3 kHz
