One for all - no matter if 3-way, 2-way car audio system application, the 6-channel amplifier Delta 6 will always be the right choice. With generously 80 Watts RMS 1-4 channel and 120 Watts RMS 5-6 channel into 4 Ohms load this amp really gets your speaker cones going despite its super-compact dimensions. On the other hand the Delta 6 stays totally cool thanks to its excellent structure layout. And even bridged configurations are possible, delivering up to 3 x 200 Watts RMS of clean and un-distorted output power.
In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. And finally the perfect sound tuning is no big deal thanks to its integrated crossover with all its setup options.
High quality Class AB output stage
Technologically advanced circuitry with low-noise components, to eliminate noise
Advance protection stage against short circuit, high frequency, DC current through the speakers, incorrect installation
Start-Stop capability down to 7.5V supply voltage
6-channel low level input
SMD (Surface Mounted Device) manufacturing technology combines minimum space requirement with maximum reliability

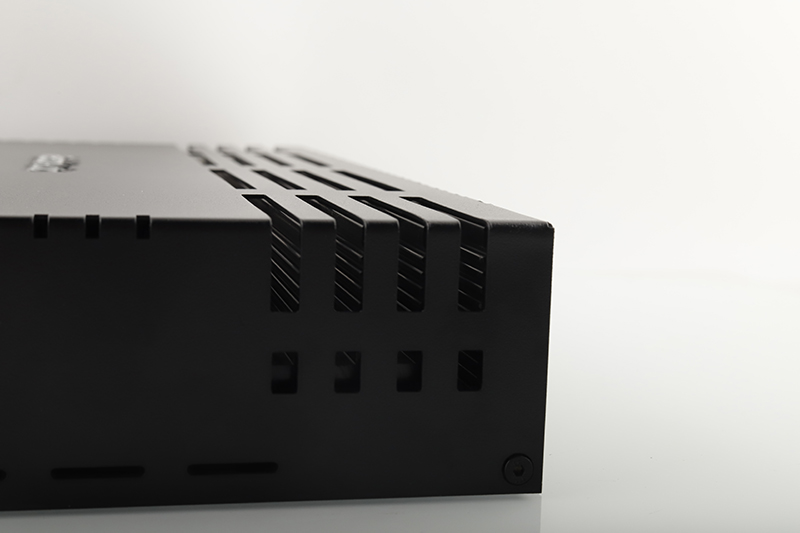

Exclusive, extremely compact and clean design, low heat dissipation thanks to extraordinary efficiency
Technical Data Table
Output power RMS <1% THD+N:
CH1 - CH4: 4 x 80W RMS@ 4Ohms, CH5 - CH6:2 x 110W RMS, CH1 - CH4: 2 x 80W RMS@ 2Ohms, CH3 - CH4:2 x 145W RMS
Amplifier technology: Class AB
Inputs: 6 x RCA
Input sensitivity RCA: CH1 - CH4: 0.85- 10V, CH5 - CH6: 0.58- 10.7V
Input impedance RCA: 10 kOhms
Frequency response: 15 Hz - 35KHz
Signal-to-noise ratio analog input: 105 dB (A-weighted)
Distortion (THD): < 0.002 %
Operating voltage: 7.5〜17 V
Idle current: 800 mA
Fuse: 2x20A ATC
Operating Temperature: -30℃ - 60℃
Net Weight: Approx 3.8KG
Dimensions (L x W x H) : 326 x 201 x 55 mm
